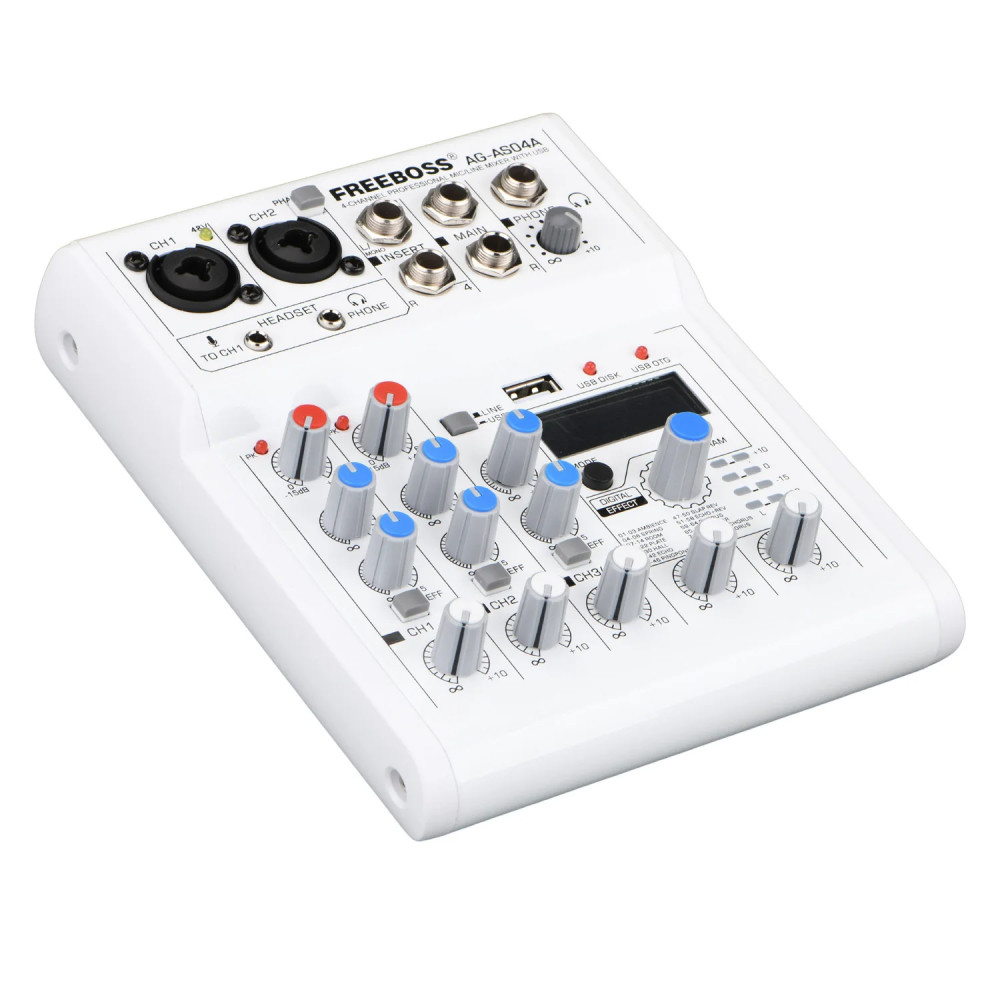

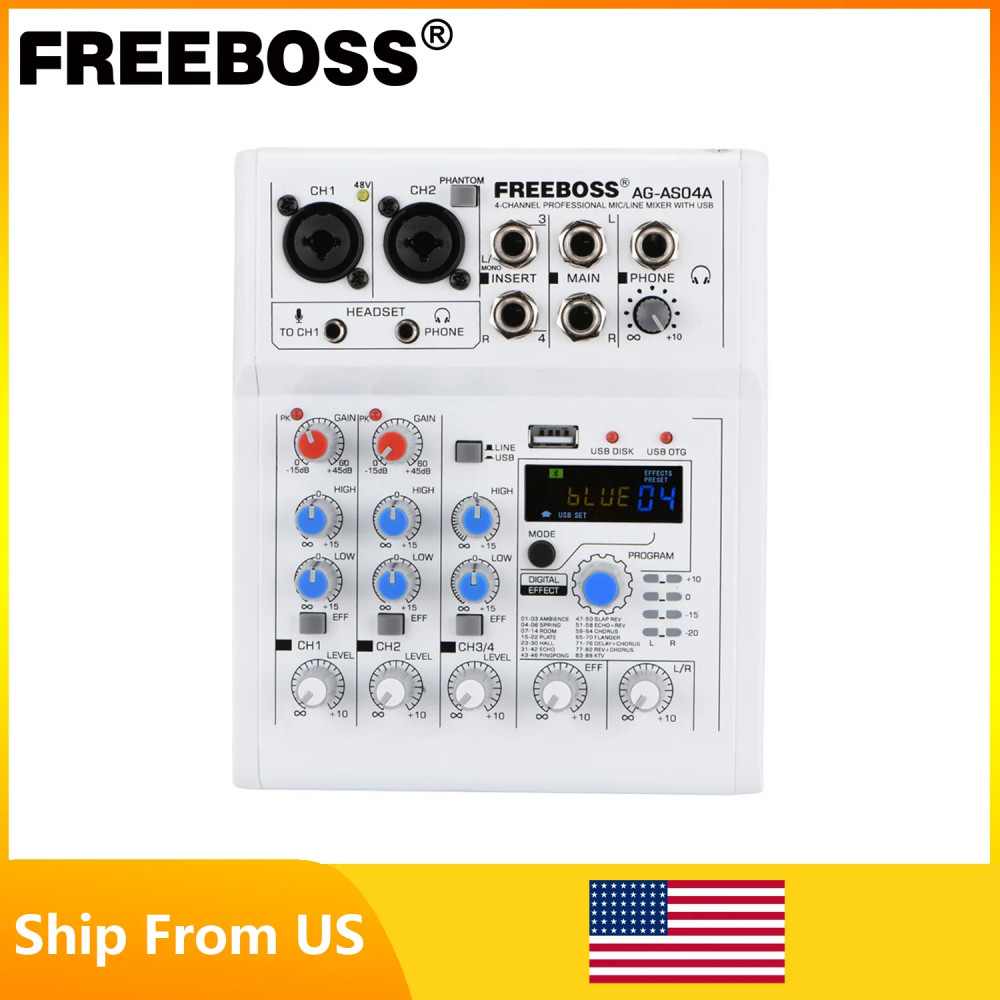

FREEBOSS Mixing Console Mobile Broadcast 4 Channel Bluetooth PC USB Play Record 88 DSP Digital Effect Sound Audio Mixer AG-AS04A

AG-AS04A

FREEBOSS 4 Channel DC 5V Bluetooth Mobile Computer USB Play and Record 88 DSP Effects Echo Reverb Personal Audio Mixer

1. 4 Channel mixing console
2. 88 Effects
3. Bluetooth function
4. USB record, play
5. Connect to Mobile, Computer

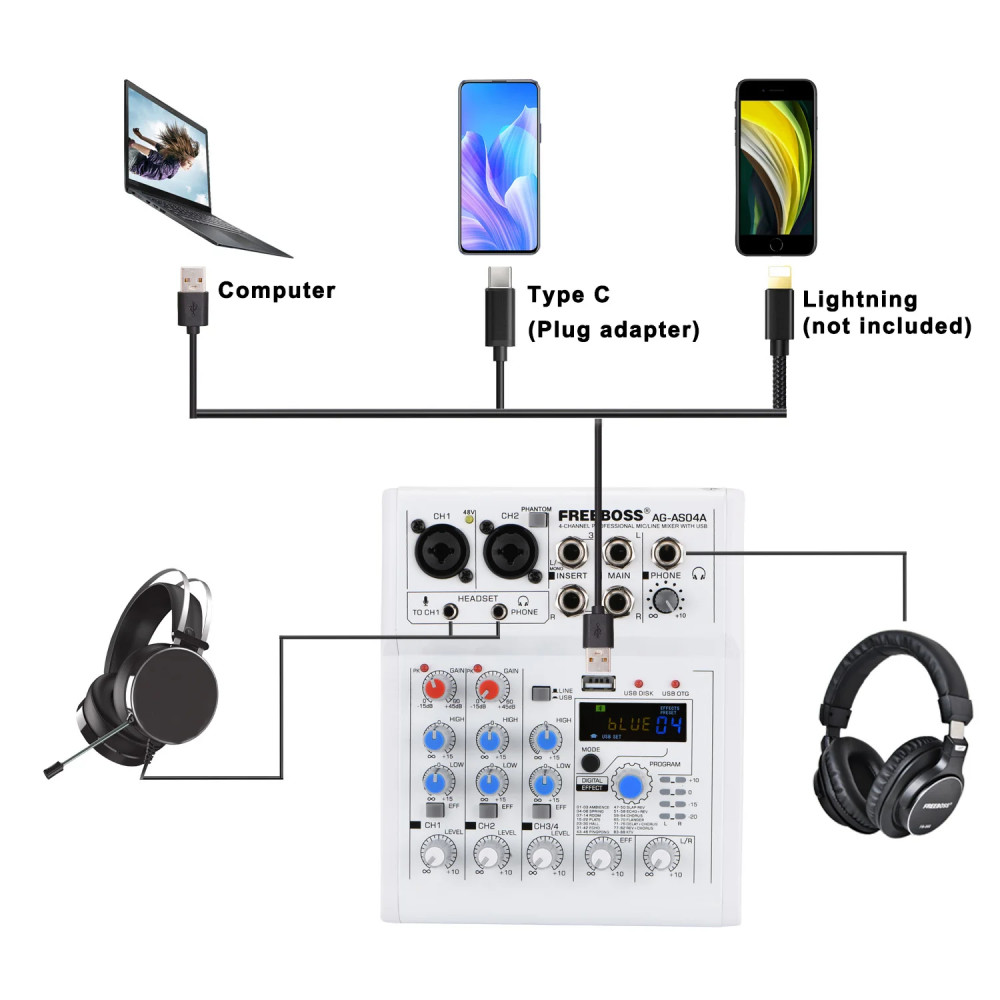

Mobile Live Broadcast

1. In the package, there is one piece USB cable , and a Type-C adapter.

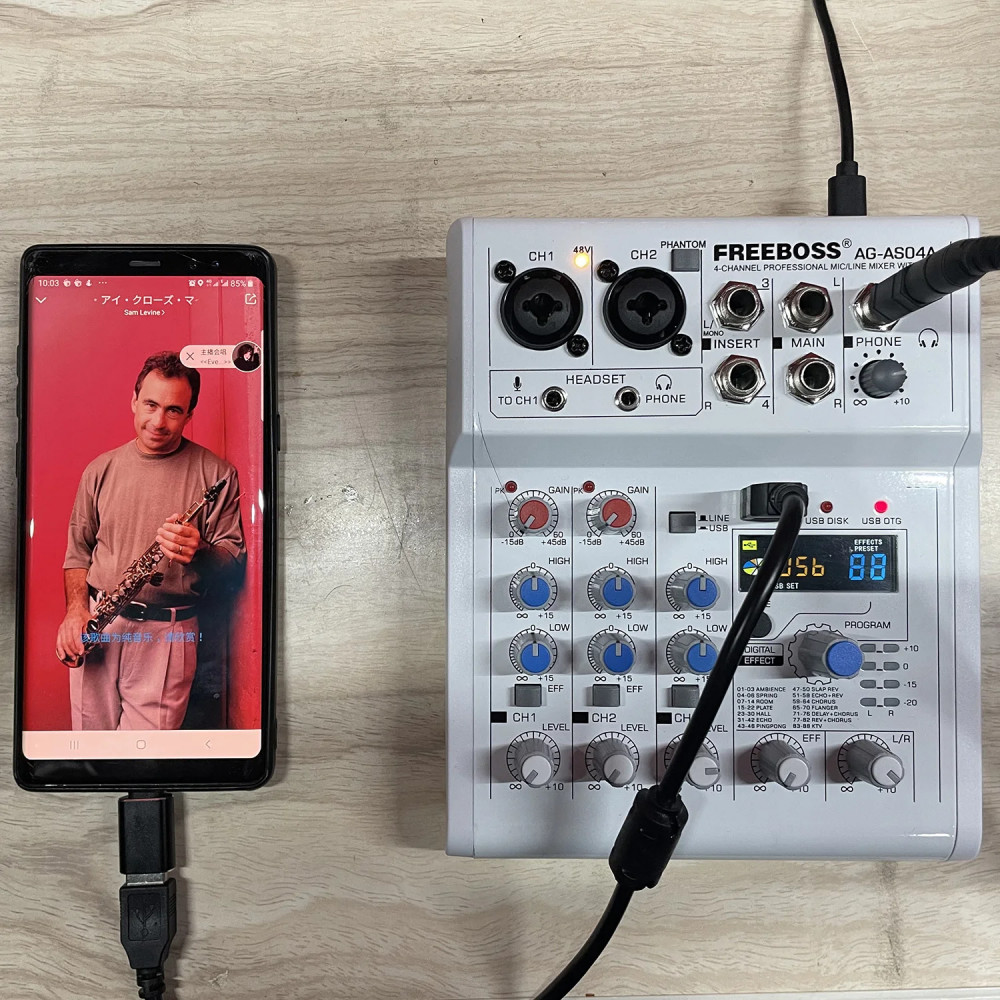

2. You can connect your mobile to Mixer via the USB interface of the mixer

3. Mixer can receive the signal from Mobile, and Mobile can receive the signal from Mixer.

1. You can connect your computer to Mixer via the USB interface of the mixer

2. Mixer can receive the signal from computer, and computer can receive the signal from Mixer.

PC play: you can play music from PC to mixer.--You need a pc music play software

PC record: You can record the sound from mixer--you need a pc record software.

Press "MODE" button, the white arrow will move to the left/middel/right position.
Left: Function switch
Middle: Player operation
Right: Effect switch

How to choose function

Step 1.
Press "MODE" to move the white arrow at the left position.
Step 2.
1) Rotate "Program" knob to choose the function
2) Press "Program" knob to confirm.

Note:
①. USB Play
②. Bluetooth
③. USB Record
④. Player play mode: Loop Cycle
⑤. Player play mode: Random
⑥. Player play mode: Single Cycle

88 Effects

Effect setting

Step1.
Press "MODE" to move the white arrow at the right position.
Step2.
1). Rotate "Program" knob to choose the effect.
2). Press "Program" knob to confirm.

Effect input:

Step 1.
Rotate "EFF" knob to adjust the Effect level.
Step 2.
Press "EFF" button to input the effects to channels.

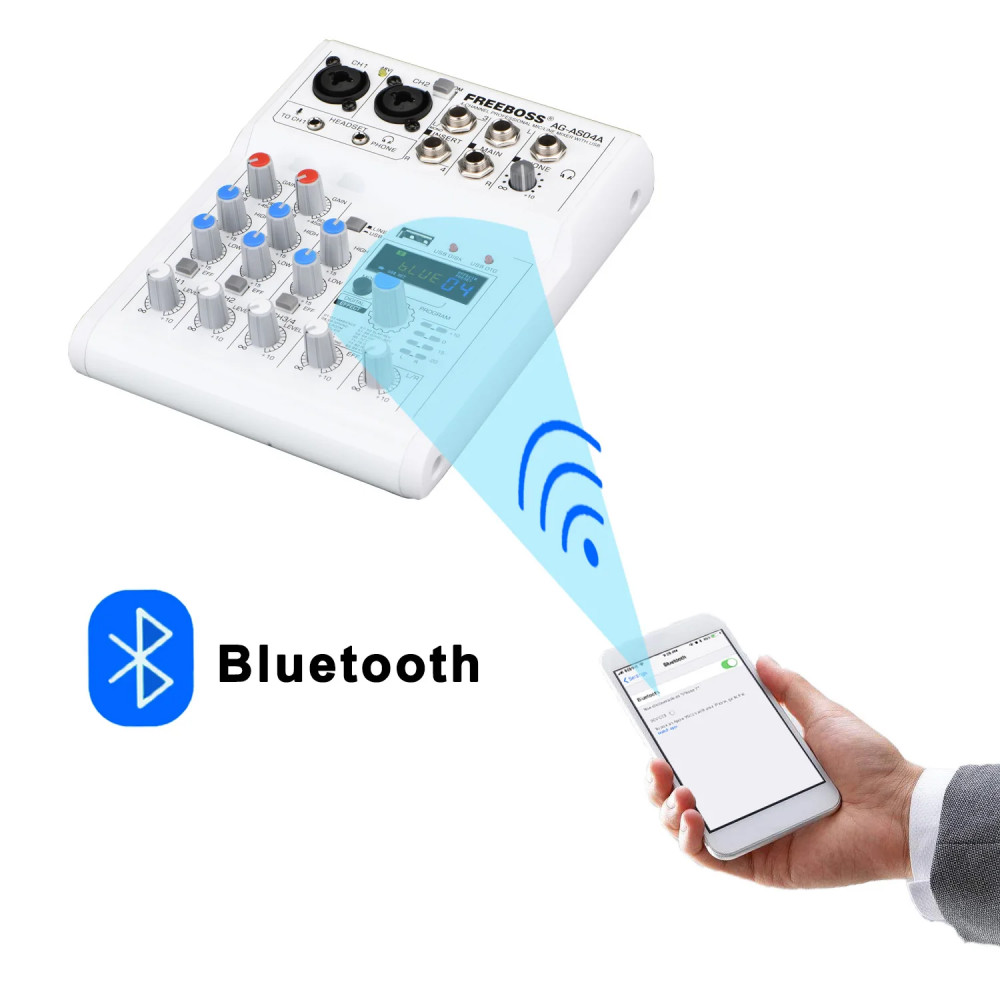

Receive the signal from other Bluetooth transmitters.

Choose Bluetooth Mode:

Step 1.
Press "MODE" to move the white arrow at the left position.

Step 2.
1) Rotate "Program" knob to choose the function
2) Press "Program" knob to confirm.

Connect Mobile to Mixer:

Step 1.
Turn on your mobile Bluetooth function, and search for the mixer.
Step 2.
Pair the Mobile and Mixer
Step 3.
Turn on your mobile music program to play music, mixer will receive the signal.

How to play Pre or Next song, or Pause?

Step 1:
Press "MODE" to move the white arrow at the middle position.
Step 2:
1) Pre/Next: Rotate "Program" to play Pre/Next song.
2) Pause: Press "Program" to pause

Bluetooth volume adjust:

Step 1:
Press Line/USB button to "USB" status
Step 2:
Rotate Channel 3/4 volume Knob to adjust Channel output volume.
Step 3:
Rotate Main output knob to adjust the Main output volume.

USB play:

Step 1.
1. Insert USB stick, USB disk light will be on.
2. Mixer will play music automatically.
Step 2:
Press Line/USB button to "USB" status
Step 3:
Rotate Channel 3/4 volume Knob to adjust Channel output volume.
Step 4:
Rotate Main output knob to adjust the Main output volume.

Note:
1. USB Stick: fat32
2. Music mode: MP3, WAV, WMA, FLAC.

How to play Pre or Next song, or Pause?

Step 1:
Press "MODE" to move the white arrow at the middle position.
Step 2:
1) Pre/Next: Rotate "Program" to play Pre/Next song.
2) Pause: Press "Program" to pause

Enter Recording Mode:

Step 1.
Press "MODE" to move the white arrow at the left position.
Step 2.
1) Rotate "Program" knob to choose the function
2) Press "Program" knob to confirm.
Step 3.
Press "MODE" to move the white arrow at the middle position.

Record:

Step 1.
Press "Program" knob to begin to record.
Step 2.
Short Press: Record pause, press again, continue to record.
Long Press: End the record.

Play Record:

Method 1: Long press "MODE"
Method 2: Long press "Program"

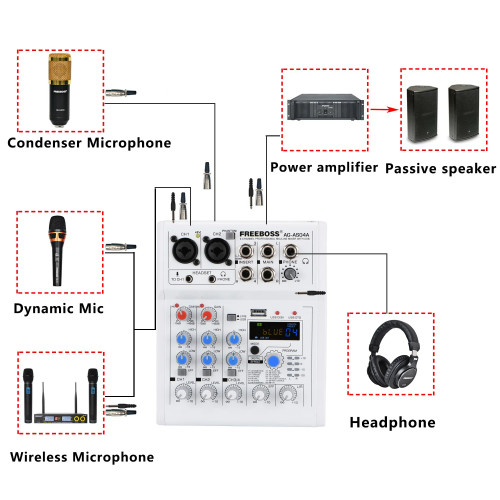

1. Press "Phantom" button, 48V led light will be on.
2. Channel 1 and Channel 2 will have +48V phantom--only for XLR jack.

Dynamic Microphone

For dynamic microphone, please do not use +48V phantom power.

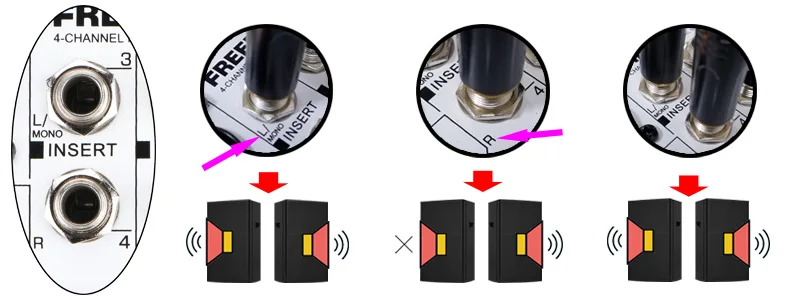

L/MONO Function

For connecting to Line-level devices such as an electric keyboard or an audio device. Use the [L/MONO] jack on channel 2 for instruments. Etc. with mono output.

Signal only input to [L/MONO] jack: Output is stereo.
Signal only input to [R] jack: Output is only right.
Signal input to [L/MONO] and [R] jacks: Output is stereo.

Phone volume adjust:

1. Channel volume
2. Main out volume
3. Phone volume

Packing List
